XY-E16-01
XiYuan
Xiyuan (Fujian) Professional Shoe Mould Co., Ltd
(Add: 18 Chongrong Road, Economic and Technological Development Zone, Quanzhou,Fujian,China)

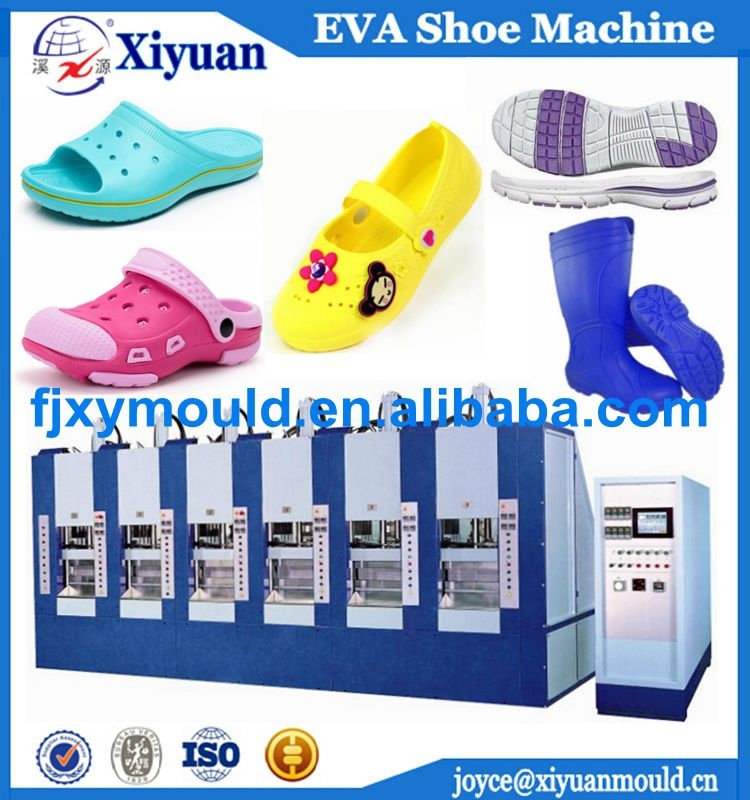

Single Color EVA Injection Slipper Sandal Clog Boot Shoe Machine
Introduction:

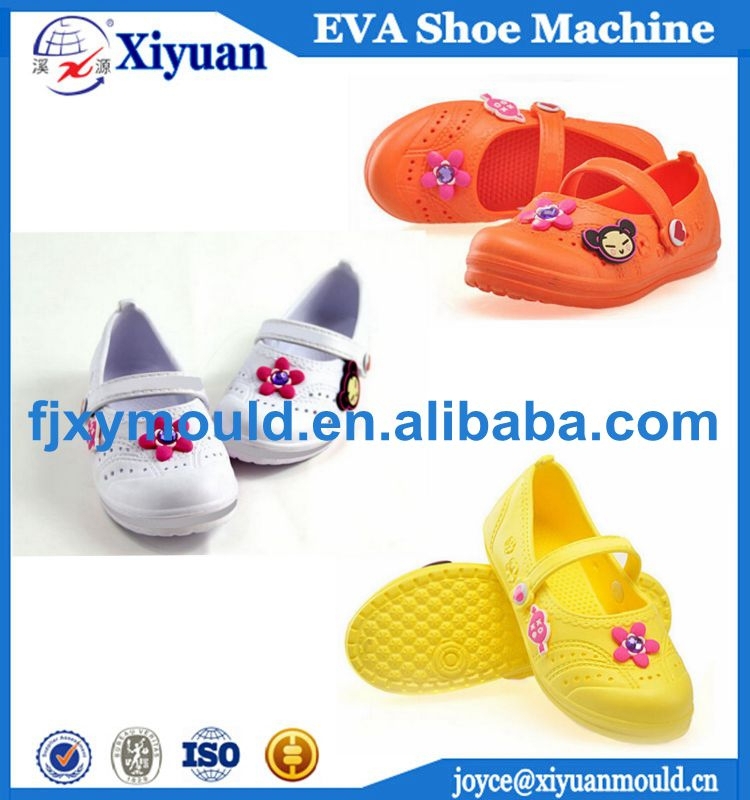

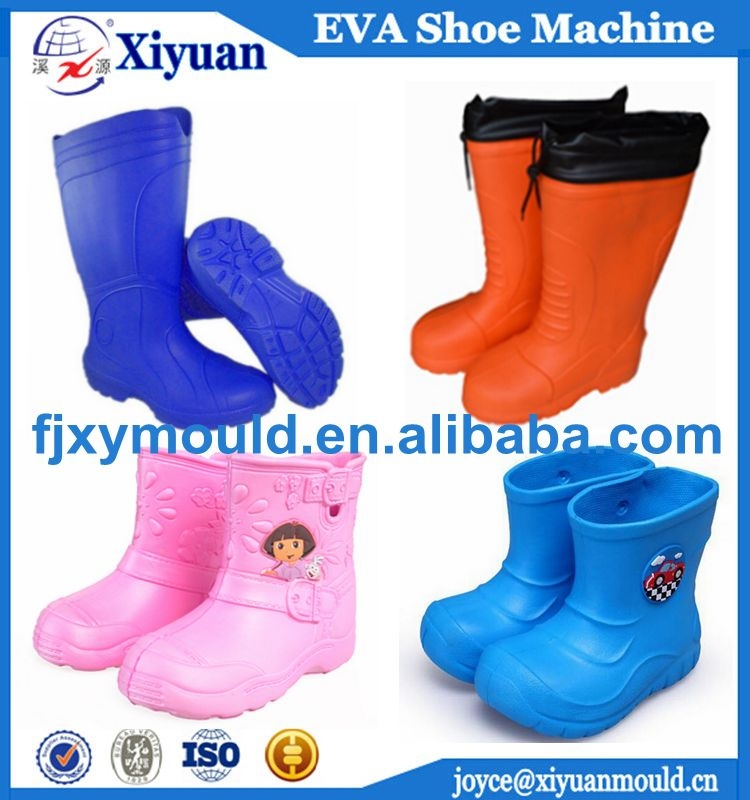

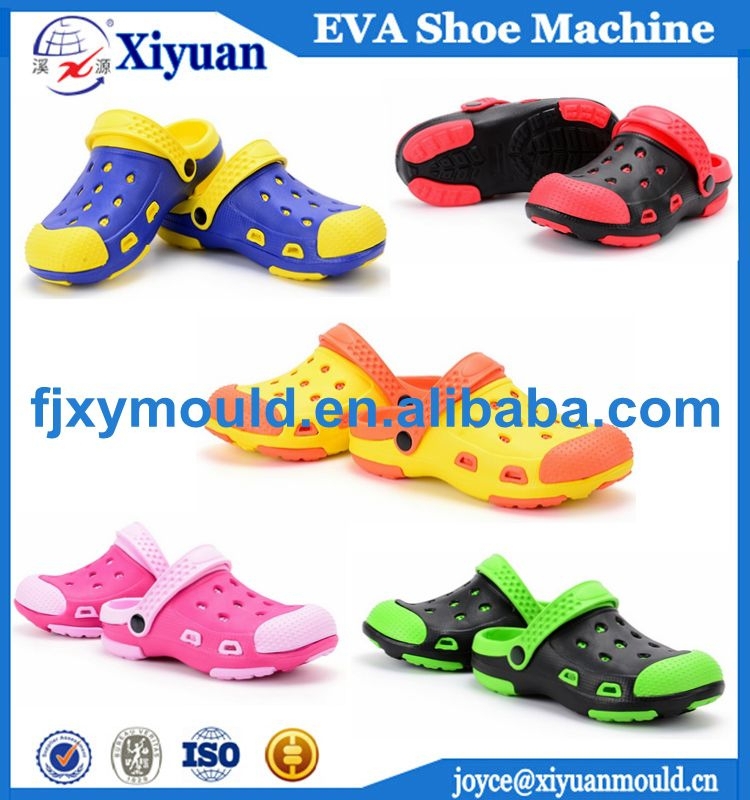

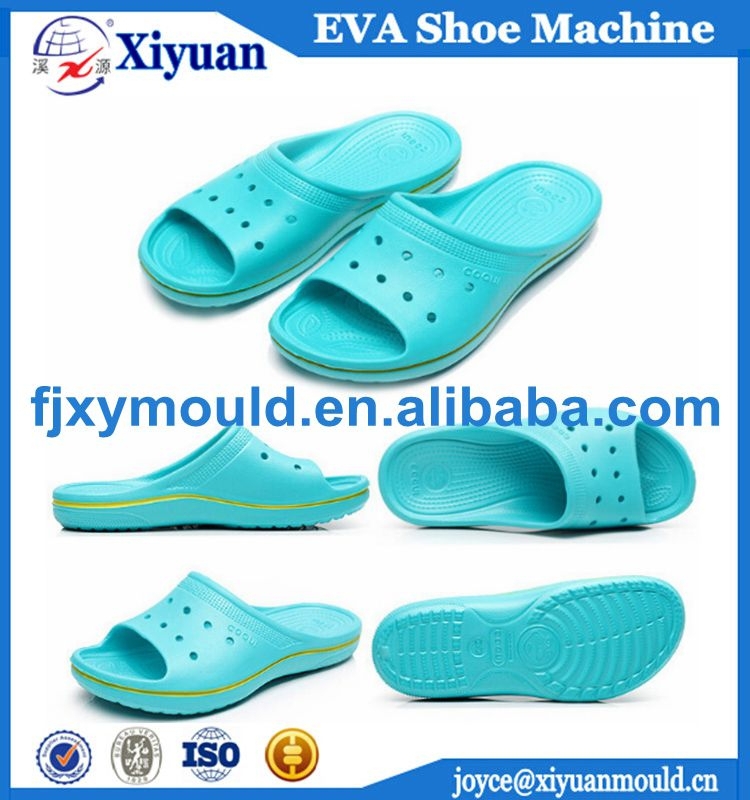

This EVA shoe machine can make various kinds of shoes, such as slippers, sandals, clogs, close shoes, boots and soles in EVA raw material.
Technical Parameter
| Mould Closing System | |
| Work Stations | 6 |
| Clamping Force (kg) | 170000-230000 |
| Mould-Opening Stroke (mm) | 350 |
| Standard Thickness of Mould (mm) | 100-210-230 |
| Mould Plate Size (mm) | 2(290*550) |
| Height of Injection Nozzle (mm) | 60 |
| Method of Heating | electric |
| Heating Power (kw) | 8.04 |
| Injection System | |
| Injectors (set) | 2 |
| Diameter of Screw (mm) | 60/70 |
| L/D Ratio of Screw | 23 |
| Max Injection Capacity (cc) | 920-1100 |
| Injection Pressure | 1100 |
| Injection Speed (cm/sec) | 10 |
| Rotating Speed of Screw (r.p.m) | 0-190 |
| Temperature Control (section) | 4 |
| Electricity Consumption | |
| Heater Barrel (kw) | 12.1 |
| Motor for Injector Moving (kw) | 1.5 |
| Heating Board of Mould (kw) | 76.8 |
| Hydraulic System (kw)(50hz) | 40.5 |
| Vacuum Pump (kw) | 2.2 |
| Cooling Fan of Barrel (HP) | 1 |
| Total Electricity (kw) | 50/70/150 |
| Oil Tank Size (L) | 1000 |
| Machine Weight (kg) | 23800 |
| Machine size (m) | 6.5*4.5*2.8 |
| Output ( Pairs/day) | 5000~8000 |
Our Advantages:
1. We can provide you one-stop solution for shoe making including all kinds of shoe mould, machine, shoe outsole, shoe, raw material and shoe accessories etc.
2. Sophisticated technology,advanced equipment,excellent workmanship and prompt delivery.
3. Professional and responsible technician team for each project to ensure quick response to any problem.
4. A long established management system to ensure the demand on high quality control and low cost.
5.OEM and ODM are welcomed.
6.We can handle your entire projects from beginning to end, from sample to shipping and all project management for the production runs.
The FAQS:
1). Q: Are you factory or trading company?
A: We are the direct factory.
2). Q: What is your term of payment?
A: Cash, L/C at sight and T/T 30% deposit, the balance to be paid before shipment.
3). Q: What is the warantty of your product?
A: We have 1 year warranty and lifelong service.
4). Q: What is your technical support of the machine?
A: We will send our technician to customer’s factory for installation and train your workers on how to use and maintain the machine.
5). Q: What about the delivery time?
A: Within 30 days after you finish the 30% prepayment.
6). Q: Where is your loading port?
A: FOB Xiamen port China.
7). Q: What’s your process?
A:
